For those who rebuild air-cooled Porsche 911 engines, the moment the engine is ready to return to the car is both gratifying and bittersweet.
There’s satisfaction in knowing the engine will run flawlessly for decades, but also a tinge of regret knowing such a mechanical work of art will soon be hidden away in the engine bay, rarely seen.

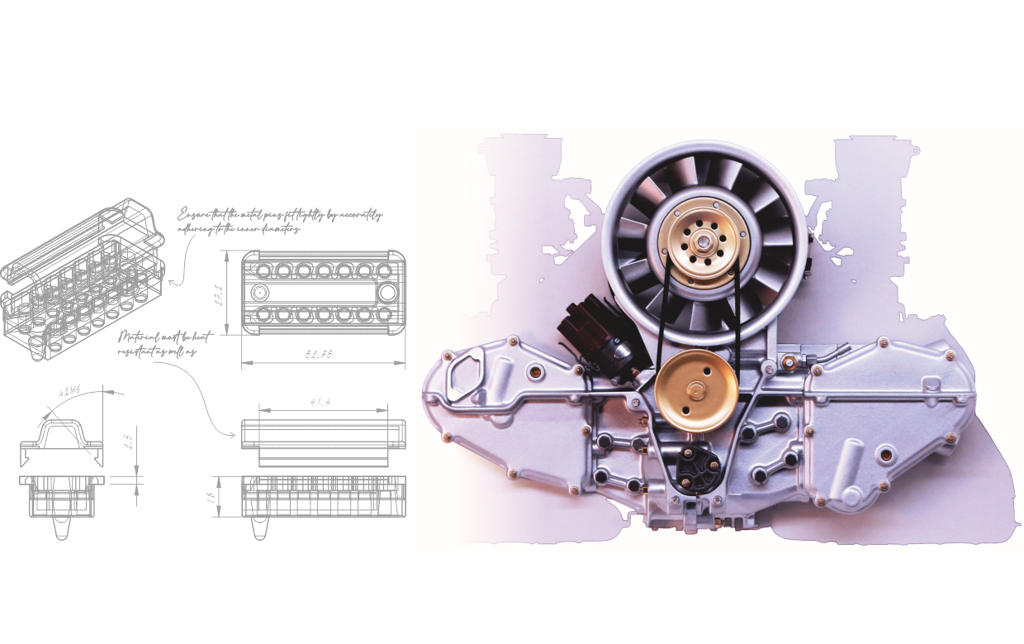

This sentiment inspired a multi-year effort to create a highly detailed 1:4 scale replica of the 911 engine. The model is proportionally accurate in every detail, right down to the smallest nut and bolt.
To showcase the intricate alloy castings—complete with authentic part numbers, stampings, flashing, and machining marks—elements like ducting, tinware, and cabling (other than HT leads) have been intentionally omitted.
Reproducing such a complex and detailed model required cutting-edge additive manufacturing technology. Every component was meticulously 3D-scanned with high precision, digitized, and, in most cases, entirely re-engineered to allow production at a 1:4 scale while preserving its original proportions and outward appearance.
This process wasn’t without challenges. One notable difficulty was sourcing fasteners that were dimensionally accurate. While M1.5 and M2 studs and nuts (scaled versions of M6 and M8 fasteners) are available, commercially produced nuts are disproportionate when scaled back up. In traditional scale modelling, such compromises are common—but not in this project.
Every part of the model is an exact miniature of the original, designed to fit together with exceptional precision. The process began with the engine block, the centrepiece and most technically demanding component to design and manufacture. Even the slightest inaccuracy in its dimensions could cause alignment issues later in the build. Unsurprisingly, the engine block took the longest to develop and became the foundation for a modular assembly system that ensures all components fit together seamlessly.
The team spared no effort in replicating the textures and finishes of the original engine as it appeared when it left the factory. This meant tracking down and closely examining some exceedingly rare engines to capture every nuance.
Even the tiniest details, such as part numbers and manufacturer emblems, have been faithfully reproduced.
These details are so precise that they’re often only visible under magnification.
It took over 1,000 hours across three years to develop the first prototype, proving the concept was feasible. Thousands more hours followed to refine the model and achieve its current level of accuracy and finish.
The model replicates the original 1965 2.0-liter 911 engine (internal designation 901), the first version of Porsche’s iconic flat-six.
A standout feature of this rare engine (type 901/01) is the Pierburg mechanical fuel recirculation pump, mounted on the chain housing, with metal fuel lines running over the fan housing. This pump, in the model, is composed of 12 individual parts, each 3D-printed, post-processed, and coated to mirror the different metals used in the original.

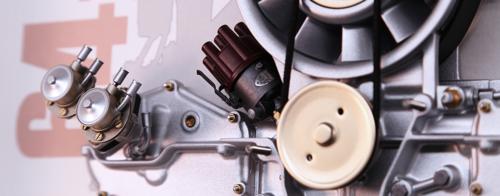

The carburettors in the model are constructed from multiple individually printed pieces, complete with jets, enrichment tubes, and an idling adjuster.
Many of these intricate details, including the lettering on the carburettor body, are so fine they’re nearly invisible without a magnifying glass.
Due to their complex shapes and tiny features, the Solex carburettors proved to be among the most challenging components to produce, requiring over 50 design and print iterations to achieve an acceptable result.

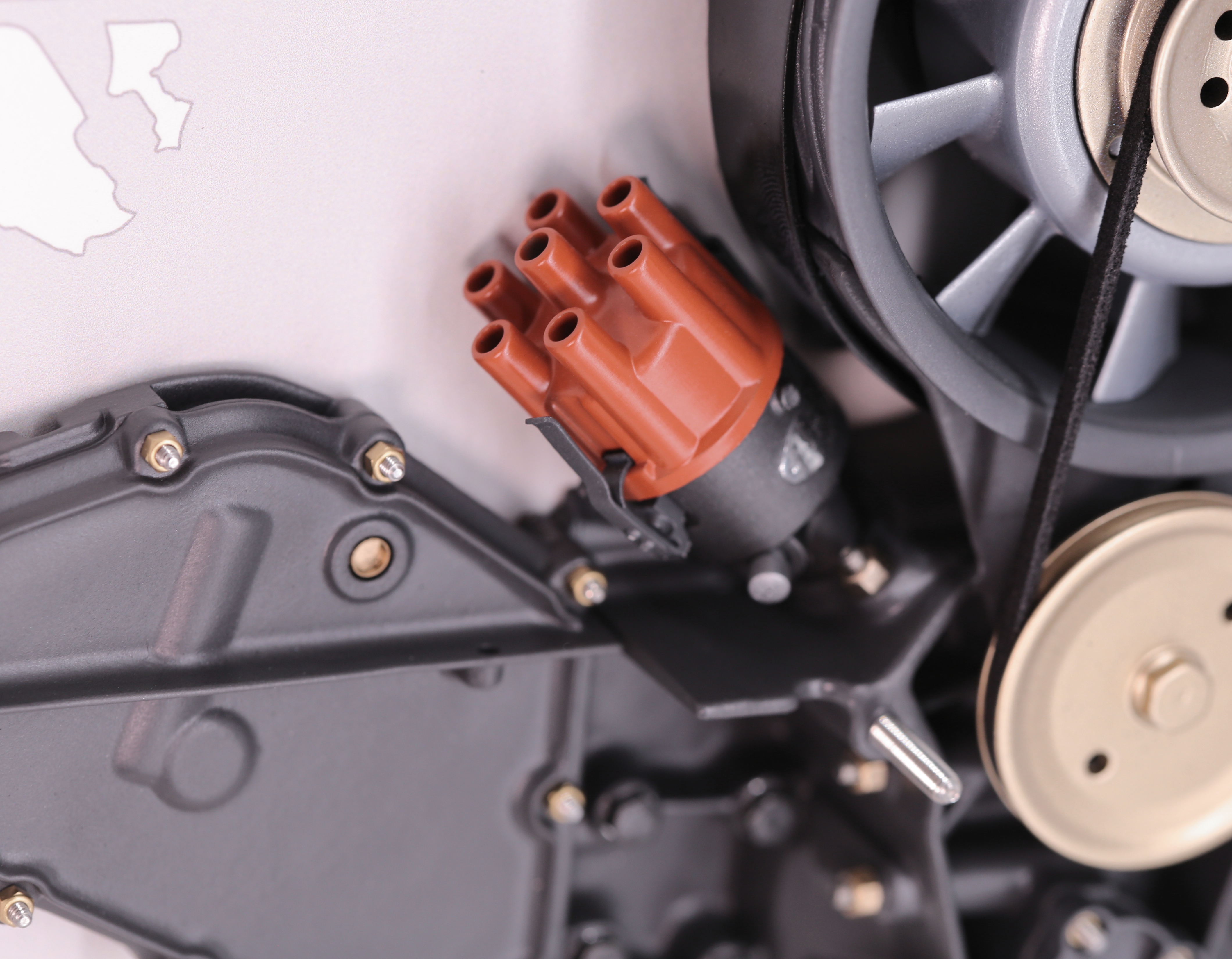

Small yet essential details, like the metal plugs in the chain housings, are printed and coated separately, a feature that enthusiasts familiar with restoring these engines will truly appreciate.
The sand-cast texture has been faithfully preserved, captured on a near-microscopic level, while the characteristic shimmer of aluminium is indistinguishable from that of the original.
Similarly, scaled-down M6 nuts, which require magnification to fully admire, replicate their full-size counterparts with stunning accuracy.
Though the model lacks the internals of a working engine, the flywheel can be turned, which rotates the pulley and cooling fan.
The fanbelt, custom-made from polyurethane, mirrors the original’s proportions exactly. The fan operates on roller bearings, while the stainless steel crankshaft is supported by carbon fibre-infused nylon bearings on both sides.
These bearings are lubricated during assembly, which can sometimes result in traces of oil appearing under the sump—just like on the real engine.
Specialized tools are used to ensure precise assembly and preparation.
For example, custom-designed clamps are employed to hold the exhaust headers in place during airbrushing, allowing unobstructed access from every angle.
The welds around the exhaust flanges are another carefully replicated feature, faithfully reproducing the look of the originals.
Unlike conventional scale models, this project makes no compromises for easier manufacturing or assembly.
Every part is scaled down with absolute accuracy, resulting in some components being so thin that they're translucent before coating.
For instance, the fins inside the oil cooler are less than 50 microns thick.
Achieving this extraordinary level of detail requires the use of specialized low-viscosity resins and a tightly controlled printing environment.
The temperature is maintained at a constant 26°C, with variations kept to within half a degree at all times, ensuring precision and consistency.
Even the jets on top of the carburettors and the bases of the enrichment tubes are visible in the model—testament to the painstaking attention to detail and the advanced techniques employed in its creation.
